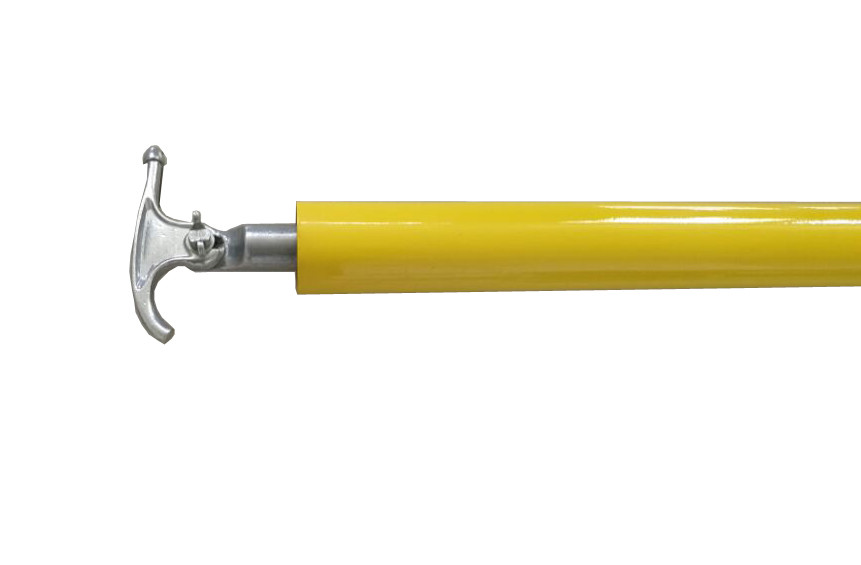

Standard Export Round Telescoping Hot Stick
The round telescoping hot sticks have maximum convenience for the lineman because they permit them to perform many routine jobs from ground level. The universal end fitting on the insulated top section accepts a wide variety of attachments, so the lineman can disconnect switches, replace cutout tubes and reclose, remove pole covers, prune trees, replace bulbs and complete many other overhead tasks.
The sticks are short,so that it can be easy carried on most trucks.The spring-loaded buttons can keep the extended tool sections securely locked in position. As each section is extended and twisted slightly, the buttons into right place to make sure the linemen well done the job.
1. Applied Standard: IEC60855, ASTM F711.
2. Parts Material:Universal head with hook: Aluminum alloy in nature color
Tube : Fiberglass tube in yellow,
Handle: Insulation rubber in black
Bag: Water-proof Nylon bag in green
Main Specification of Standard Export Round Telescoping Hot Stick
Products
Code | Extract Length
M | Retract Length
M | Sections | Base diameter
mm | Approximate Weight
kg |
| 211001 | 3.0 | 1.24 | 3 | 34 | 0.9 |
| 211002 | 4.0 | 1.57 | 3 | 34 | 1.2 |
| 211003 | 4.0 | 1.25 | 4 | 39 | 1.4 |
| 211004 | 5.0 | 1.50 | 4 | 39 | 1.7 |
| 211005 | 5.0 | 1.30 | 5 | 44 | 1.8 |
| 211006 | 6.0 | 1.75 | 4 | 39 | 2.0 |
| 211007 | 6.0 | 1.50 | 5 | 44 | 2.2 |
| 211008 | 7.0 | 1.70 | 5 | 44 | 2.5 |
| 211009 | 7.0 | 1.47 | 6 | 49 | 2.7 |
| 211010 | 8.0 | 1.64 | 6 | 49 | 3.1 |
| 211011 | 8.0 | 1.49 | 7 | 54 | 3.2 |
| 211012 | 9.0 | 1.63 | 7 | 54 | 3.6 |
| 211013 | 10.0 | 1.77 | 7 | 54 | 4.0 |
FAQ:
Q: What is Live Line Tools?
A: Live Line Tools is the brand name TID POWER's TID-HVD1 product, which is a line tool designed to help increase the safety of workers during electrical maintenance. It is certified by ISO9001:2008 and has a minimum order quantity of 100 pieces. The packaging details include a plastic bag or woven belt inside the carton box and pallet. Payment terms include L/C, Western Union, D/P, D/A, T/T, and MoneyGram, among others.
Q: What are the benefits of using Live Line Tools?
A: Live Line Tools helps to protect workers while performing electrical maintenance by providing additional safety measures. It can also help to increase efficiency and reduce downtime.
Q: What safety standards does Live Line Tools meet?
A: Live Line Tools meets ISO9001:2008 certification standards.
Q: What is the minimum order quantity?
A: The minimum order quantity is 100 pieces.
Q: What are the payment terms?
A: The payment terms include L/C, T/T, and others.
